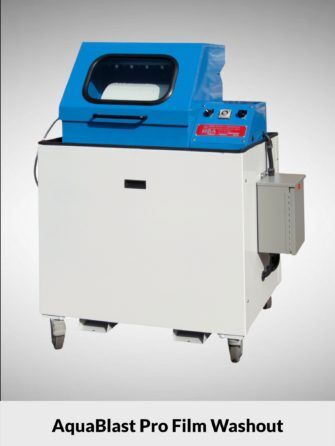

AquaBlast Pro Washout | Media Blast & Abrasives, Inc.

The AquaBlast Pro Washout is just one of a great line of our washout Mediablasters. The patented AquaBlast® lineup consists of three (3) patented Mediablaster® machines each designed for a specific need. The Pro is a production capacity unit with our new patented design saving up to 80% on water usage and processing film faster than the competition for a lot less cost. The Pro blast cabinet is also simple to install using 120-volt, single-phase electricity and the patented pressurized design with no messy water holding tank to slop over, overflow and simply lose heat and increase water heating cost.

AquaBlast Pro Washout Capabilities

The AquaBlast® Pro film washout machine design using the *patented enclosed pressurized washout system and is capable of film washout at half the time of the competition. This results in operation requiring only 2.5 gallons of water per minute.

The AquaBlast Pro blasting cabinet was designed for mid-sized facilities using 1 to 4 each 100' rolls per month. The Pro model will process any volume and process all day, but the faster Elite 2.0 model with larger drum area and highest fastest processing pressure would be a better choice for higher production, saving labor time just makes better dollar sense.

Why Choose Media Blast & Abrasive, Inc.?

When it comes to finding the right company for your blasting needs, Media Blast & Abrasive, Inc. is the clear choice. With over 40 years of experience in the industry, we have perfected our craft. So we are able to provide the highest quality results for our clients. One of our standout services is the AquaBlast Pro Washout. It uses state-of-the-art technology to clean even the most delicate of surfaces without causing damage. Our team of experts is committed to providing excellent customer service. And this insures that every project is completed to your satisfaction. Therefore, choose Media Blast & Abrasive, Inc. for reliable and professional blasting services.

Read more
Jump to Machine Specs

If you’re looking for film washout parts or the user manual for this washout machine, contact us here.





  • 100% weldedstainless-steel washout chamber and drain
  • 532 sq.in. film washout drum 12″ x 38″ expandable to 14″ x 38″
  • Constant speed drum rotation gear motor assembly
  • White powder coated film drum
  • 5 each low flow fan jets with fanjet protector screens
  • 2.5 gpm water usage
  • Large balanced water flow manifold, adjustable and expandable
  • Stainless hoses with threaded connections
  • Hand washout gun
  • Tank-less pressurized patented design
  • Cycle timer, adjustable
  • Cycle start push button with safety door interlock
  • Water pressure gauge, monitor only not panel mounted
  • Stainless steel washout chamber with balanced hinged part load
  • Stainless steel double pan top mount for 100% water capture
  • Locking casters with cabinet fork lift channels
  • 2.5 gallon per minute water usage @ 205 psi
  • Magnetic film holding magnets
  • 5″ water drain with air-gap
  • Master water inlet on-off valve

AVAILABLE OPTIONS:

  • Cycle observation view window
  • Panel mounted single inlet water blending water valve with temperature gauge
  • Panel mounted water filter, sized for daily machine operation
  • Portable sump pumping station for areas without drain

NOTE: Standard Features are included with every model. Available Options can be added at additional cost and may require custom machine work, which may increase machine delivery time.

*US 9,682,585 & US 10,221,567

Model Name:

AquaBlast® PRO

Machine Type:

Automatic Film Washout Machine

Water Pressure:

up to 205 psi

GPM Usage:

2.9

Designed For:

1 to 4 100’ film rolls per month

Washout Chamber

Stainless Steel

Drum Size:

456 sq. in.

Additional Drum Specs:

12″ x 38″ expandable to 14″ x 38″ up to 532 square inches

Power Supply:

14 amps (requires GFI) UL approved parts only

Electrical:

GFI, 120-volt single phase

Key Features:

The Pro film washout machine uses less than 3 gpm with a faster washout than the competition – designed and patented for high pressure film washout on today’s films- stainless washout chamber – double stainless top captures all drips – 120-volt GFI operation for easy installation – all stainless braided water supply lines and more

Paint Specifications:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.

Rotation drum is white powder coated for durability.

MODEL DRUM WASHOUT AREA OVERALL
DIMENSIONS
STANDARD
ELECTRICAL
ESTIMATED
SHIPPING WT.
AquaBlast® Pro
Request Info
12" x 38"
Expandable to 14" x 38"
Up to 532 sq.in.
35"W x 30"D x 59"H 120-volt- 1-Ph
Requires GFI
Crated
535 lbs
MODEL
AquaBlast® Pro
Request Info
DRUM WASHOUT AREA

12" x 38"
Expandable to 14" x 38"
Up to 532 sq.in.

OVERALL
DIMENSIONS

35"W x 30"D x 59"H

STANDARD
ELECTRICAL

120-volt- 1-Ph
Requires GFI

ESTIMATED
SHIPPING WT.

Crated
535 lbs
