click on image for larger view

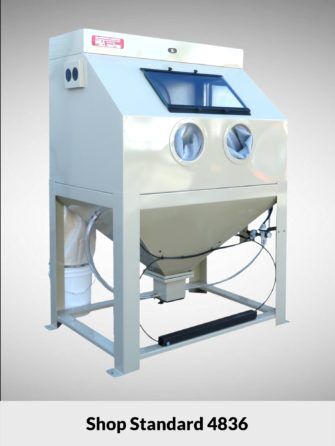

The Shop Standard is a dry, siphon, R&D blast cabinet made from 100% welded 12- and 14-gauge cold rolled steel. It's available in 4 standard sizes to accommodate a variety of applications and operates with a 5/16" 25 cfm gun size for faster part processing when daily operation is not needed or required.
The Shop Standard blast cabinet uses a cabinet design from the more costly Industrial Production line of machinery with a smaller, non-production tubular bag dust collector to reduce cost associated with the 2.0 model.
Should your application require a large blast cabinet, fully loaded machine features, and 22-25 cfm of compressed air, but not the industrial dust collector design used on the 2.0, the Shop Standard is the answer.
This blast cabinet model comes with internal abrasive storage, *patented separator reclaimer, positive pressure tubular dust collector bag, and many other included standard features that outperforms competitor’s mediablasters.
This is the original Shop Standard, one of Media Blasts’ first models introduced in 1977. The new, redesigned 2.0 model, also listed and shown, debuted in 2018 with an advanced negative pressure cartridge filtration dust collector design used in all Media Blast® siphon and direct pressure Industrial Production blasting cabinets. Due to popular demand, we included the Shop Standard back into the machinery lineup.
The Shop Standard MediaBlaster® saves you money by using the tubular dust bag. These blasting cabinets are larger – deeper, wider and taller – and come fully loaded with machine features. The Shop Standard gets you one step closer to Industrial sandblasting equipment and construction without the Production machine cost.
If you're looking for high-quality media blast machines, look no further than Media Blast & Abrasive, Inc. With years of experience in the industry, we are proud to be the leading provider of media blast equipment. Our machines are top-of-the-line and built to last, with a range of options to choose from depending on your needs. In addition to our great selection of machines, we also offer unbeatable customer service and support. Whether you have a question about our products or need help choosing the perfect Shop Standard Blast Cabinet, our team is always here to help. Contact us today to learn more about why we're the best choice for media blast equipment.
If you’re looking for blast cabinet parts or the user manual for this machine, contact us here.
*US 7,008,304
*US 7,008,304
Shop Standard
100% welded cabinet construction, great for R&D applications
Dry, siphon
22 cfm @ 80 psi
20 – 25 cfm at 80 – 100 psi
We recommend a 220-volt single-phase electrical power supply for the air compressor.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.
60 to 120 mesh
Mil-Spec #8 glass beads best
Glass Beads and Aluminum Oxide
700 cfm pressure blower @ 1” S.P., 12 sq.ft. tubular bag dust collector – patented separator reclaimer – manual dust bag cleaning cycle
4std. cabinet sizes – 100% welded -abrasive mixing valve – all air controls – patented separator reclaimer – tungsten nozzle – safety glass window – low static window protector –LED cabinet lighting – cost saving positive pressure tubular dust bag dust collector
Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.
MODEL | WORK AREA / DOOR OPENING | OVERALL DIMENSIONS | DUST COLLECTOR SPECIFICATIONS | STANDARD ELECTRICAL | ESTIMATED SHIPPING WT. |
---|---|---|---|---|---|
3628 Request Info | 36" x 28" x 30"H Door 22" x 25"H | 47" x 37" x 63"H | Dust bag 5-gallon dust pail 1/2 hp 700 cfm blower | 120V/60Hz/1Ph | Wood crate 455 lbs |
4828 Request Info | 48" x 28" x 30"H Door 22" x 25"H | 47" x 37" x 63"H | Dust bag 5-gallon dust pail 1/2 hp 700 cfm blower | 120V/60Hz/1Ph | Wood crate 500 lbs |
3636 Request Info | 36" x 36" x 30"H Door 30" x 25"H | 44" x 51" x 72"H | Dust bag 5-gallon dust pail 1/2 hp 700 cfm blower | 120V/60Hz/1Ph | Wood crate 500 lbs |
4836 Request Info | 48" x 36" x 30"H Door 30" x 25"H | 52" x 51" x 72"H | Dust bag 5-gallon dust pail 1/2 hp 700 cfm blower | 120V/60Hz/1Ph | Wood crate 520 lbs |
36" x 28" x 30"H
Door 22" x 25"H
47" x 37" x 63"H
Dust bag
5-gallon dust pail
1/2 hp 700 cfm blower
120V/60Hz/1Ph
Wood crate
455 lbs
48" x 28" x 30"H
Door 22" x 25"H
47" x 37" x 63"H
Dust bag
5-gallon dust pail
1/2 hp 700 cfm blower
120V/60Hz/1Ph
Wood crate
500 lbs
36" x 36" x 30"H
Door 30" x 25"H
44" x 51" x 72"H
Dust bag
5-gallon dust pail
1/2 hp 700 cfm blower
120V/60Hz/1Ph
Wood crate
500 lbs
48" x 36" x 30"H
Door 30" x 25"H
52" x 51" x 72"H
Dust bag
5-gallon dust pail
1/2 hp 700 cfm blower
120V/60Hz/1Ph
Wood crate
520 lbs
