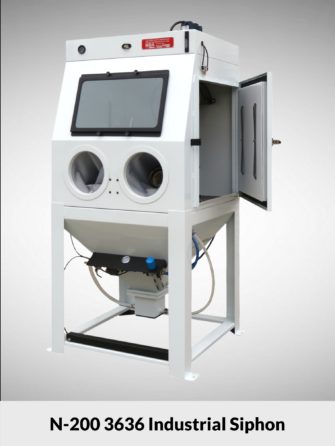

N-200 Siphon

The N-200 Siphon sand blasting cabinet by Media Blast® is industrial sandblasting equipment designed for Production capacity applications, which require one (1) hour or more of daily operation using a production gun size, 25 to 90 cfm compressed air. This blast cabinet is in a class alone and is used in military applications and projects requiring fast cleaning with low maintenance cost. Low maintenance cost means the very best blast cabinet parts for reduced wear when using larger, faster, cfm gun sizes.

The dust collector on this Mediablaster® is negative pressure, and has the most advanced cartridge filtration and effortless pneumatic cleaning cycle assembly standard. It is a large percentage of the sandblasting cabinet cost, but worth every penny. These features ensure longer machine duty cycle, a cleaner work area, and longer blower service life. The capacity to store dust with ease of service is what makes this MediaBlaster sandblasting equipment the right choice for Production Operations. In addition, an even larger dual cartridge option is available for extended daily operation using larger abrasive gun sizes.

This blast cabinet is available with two top styles, 40-degree window slope for low height parts with great operator viewing and 17-degree expanded height top for taller parts requiring more inside cabinet height and less view window angle.

Look at the HEPA after filter in available options for machine cell operation. This is a true negative pressure HEPA filter with 100% welded HEPA chamber and not simply a positive pressure HEPA filter attached to the blower exhaust.

Read more
Jump to Machine Specs

If you’re looking for blast cabinet parts or the user manual for this machine, contact us here.

To learn more, check out the N-200 INDUSTRIAL SIPHON BLAST CABINET article on our blog.

*US 7,008,304

STANDARD FEATURES:

  • 100% welded 14-gauge CRS cabinet construction
  • Bolt-on machine hopper, replaceable
  • Adjustable abrasive flow-control mixing valve, replaceable
  • Foot operated blast control valve with treadle pedal
  • 3-Y blast gun with 3/8” tungsten carbide nozzle standard
  • Long wear abrasive hose
  • LED outside cabinet lighting on standard top with LED flood lighting
  • LED flood lighting on expanded height models
  • 13 x 24-inch safety glass ClearView® window
  • Glass window protector, low static
  • Window Sweep
  • Double panel door construction, no spills
  • Lockable refrigerator door handle
  • Safety door interlock
  • Precision air-regulator, air filter/water trap with gauge
  • 10” diameter work ports with two-piece glove and gauntlet
  • Easy to use operator dash panel
  • Expanded metal work grates, 3/4″ – #9 flattened
  • Bolt-in cabinet hopper scalper screen
  • 1/2 hp 700 cfm @ 1” S.P. class III pressure blower
  • Separator reclaimer, pneumatic centrifuge (*Patented) internal
  • 220 sq.ft. MERV tested certified cartridge filter with pneumatic vibrator cleaning cycle
  • Hopper dust storage and maintenance access service door
  • Machine Lag Pads
  • Catalyst paint

*US 7,008,304

AVAILABLE OPTIONS:

Some of the most used options are:

  • Ambient Dryer
  • Fixed Turntable
  • Heavy Duty Bar Work Grates
  • Mobile Work Cart and Turntable with Internal Tracks
  • Outside Tracks and Door Modification
  • Dual Dust Collector Cartridge for 440 Sq.Ft. of total filter surface
  • Automatic Timed Reverse Pulse Cleaning Cycle
  • HEPA After Filter, requires 2 HP Blower
  • Silener to meet OSHA levels
  • Super Silencer
  • Additional Side Access Door
  • Mirror Image Cabinet
  • Dust collector cycle cleaning gauge
  • Blower silencer

Click here to see the long list of time saving and maintenance saving features available on most Media Blast Production Models.

NOTE: Standard Features are included with every model. Available Options can be added at additional cost and may require custom machine work, which may increase machine delivery time.

Model Name:

N-200 Siphon

Machine Type:

Industrial, production capacity, machine high duty cycle – larger faster cfm gun sizes – high duty cycle

Abrasive Delivery:

Dry, siphon

Air Specs:

25-90 cfm

Compressed Air Usage:

25 to 90 cfm at 80 psi

Suggested Air Compressor:

The standard gun size for the N-200 is 3/8″ using 46 cfm at 80 psi. Smaller and larger gun sizes are available for applications with larger and smaller air compressors. Air compressors vary greatly, check the cfm output on the compressor being used or visit Air Basics for more information on compressor selection.

Pro Tip: Never buy a compressor using the displacement cfm numbers; always use the second cfm volume number listed with 90-100 psi inside the tank.

Standard Cleaning Cycle is pneumatic vibration, optional reverse pulse available; always make sure 100 psi line pressure is available for proper machine control operation.

Recommended Abrasive Size:

60 to 150 mesh, cabinet size sensitive, larger cabinet size 60 to 120 mesh

Additional Abrasive Info:

Angel of Repose varies with mesh size

Most Used Abrasive Type:

Glass Beads, Aluminum Oxide, Silicon Carbide, Plastic and more, S-110 and finer Steel Shot

Dust Collector

700 & 1100 cfm blowers – 220 to 440 sq.ft. cartridge filters – hopper dust storage – pneumatic vibrator cleaning standard – patented separator reclaimer – high duty cycle

Key Features

9 standard production cabinets – internal cyclone separator – 120 volt and high voltage electrical single power standard – abrasive mixing valve – LED lighting – all air controls – carbide nozzle – safety glass window with protector – hopper drain – work grates – and more

Paint Specification:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.

MODEL WORK AREA /
DOOR OPENING
OVERALL
DIMENSIONS
DUST COLLECTOR
SPECIFICATIONS
STANDARD
ELECTRICAL
ESTIMATED
SHIPPING WT.

3628

Request Info
36" x 28" x 30"H
Door 22" x 25"H
44" x 43" x 84"H 220 sq.ft. cartridge
700 cfm blower C-III
Pneumatic Conveyor
120V/60Hz/1Ph Wood crate
590 lbs

3030

Request Info
30" x 30" x 30"H
Door 24" x 25"H
34" x 50" x 84"H 220 sq.ft. cartridge
700 cfm blower C-III
Pneumatic Conveyor
120V/60Hz/1Ph Wood crate
575 lbs

4828

Request Info
48" x 28" x 30"H
Door 22" x 25"H
52" x 43" x 84"H 220 sq.ft. cartridge
700 cfm blower C-III
Pneumatic Conveyor
120V/60Hz/1Ph Wood crate
600 lbs

3636 Std. Top 40-degree

Request Info
36" x 36" x 30"H
Door 30" x 25"H
44" x 51" x 84"H 220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator
120V/60Hz/1Ph Wood crate
607 lbs

3636 Expanded Top

Request Info
36" x 36" x 36"H
Door 27" x 28"H
44" x 51" x 90"H 220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator
120V/60Hz/1Ph Wood crate
682 lbs

4836 Standard Top

Request Info
48" x 36" x 36"H
Door 30" x 25"H
52" x 51" x 84"H 220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator
120V/60Hz/1Ph Wood crate
1075 lbs

4836 Expanded Top

Request Info
48" x 36" x 36"H
Door 27" x 28"H
52" x 51" x 90"H 220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator
120V/60Hz/1Ph Wood crate
780 lbs

4848 Expanded Top

Request Info
48" x 48" x 36"H
Door 39" x 28"H
52" x 65" x 90"H 220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator
120V/60Hz/1Ph Wood crate
960 lbs

6036 Expanded Top

Request Info
60" x 36" x 36"H
2 Doors 27" x 28"H
65" x 51" x 90"H 440 sq.ft. cartridge
1100 cfm blower C-III
Internal Separator
208/230/460/60Hz
Single power source
Wood crate
980 lbs

6048 Expanded Top

Request Info
60" x 48" x 36"H
2 Doors 39" x 28"H
65" x 65" x 90"H 440 sq.ft. cartridge
1100 cfm blower C-III
Internal Separator
208/230/460/60Hz
Single power source
Wood crate
1400 lbs

6060 1 Station

Request Info
60" x 60" x 48"H
2 Doors 51" x 40"H
65" x 75" x 102"H 440 sq.ft. cartridge
1100 cfm blower C-III
Internal Separator
208/230/460/60Hz
Single power source
Wood crate
1700 lbs

9648 2 Station

Request Info
96" x 48" x 48"H
2 Doors 39" x 40"H
100" x 68" x 102"H (2) 220 sq.ft. cartridges
(2) 700 cfm C-III blower
(2) Internal Separators
120V/60Hz/1Ph Wood crate
1700 lbs

12060 Expanded Top

Request Info
120" x 60" x 48"H
2 Doors 51" x 40"H
126" x 116" x 110"H (2) 440 sq.ft. cartridges
(2) 1100 cfm blowers
(2) Internal Separator
208/230/460/60Hz Wood crate
2800 lbs

MODEL

WORK AREA /
DOOR OPENING

36" x 28" x 30"H
Door 22" x 25"H

OVERALL
DIMENSIONS

44" x 43" x 84"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Pneumatic Conveyor

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
590 lbs

MODEL

WORK AREA /
DOOR OPENING

30" x 30" x 30"H
Door 24" x 25"H

OVERALL
DIMENSIONS

34" x 50" x 84"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Pneumatic Conveyor

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
575 lbs

MODEL

WORK AREA /
DOOR OPENING

48" x 28" x 30"H
Door 22" x 25"H

OVERALL
DIMENSIONS

52" x 43" x 84"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Pneumatic Conveyor

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
600 lbs

MODEL

3636 Std. Top 40-degree

Request Info

WORK AREA /
DOOR OPENING

36" x 36" x 30"H
Door 30" x 25"H

OVERALL
DIMENSIONS

44" x 51" x 84"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
607 lbs

MODEL

3636 Expanded Top

Request Info

WORK AREA /
DOOR OPENING

36" x 36" x 36"H
Door 27" x 28"H

OVERALL
DIMENSIONS

44" x 51" x 90"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
682 lbs

MODEL

4836 Standard Top

Request Info

WORK AREA /
DOOR OPENING

48" x 36" x 36"H
Door 30" x 25"H

OVERALL
DIMENSIONS

52" x 51" x 84"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
1075 lbs

MODEL

4836 Expanded Top

Request Info

WORK AREA /
DOOR OPENING

48" x 36" x 36"H
Door 27" x 28"H

OVERALL
DIMENSIONS

52" x 51" x 90"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
780 lbs

MODEL

4848 Expanded Top

Request Info

WORK AREA /
DOOR OPENING

48" x 48" x 36"H
Door 39" x 28"H

OVERALL
DIMENSIONS

52" x 65" x 90"H

DUST COLLECTOR
SPECIFICATIONS

220 sq.ft. cartridge
700 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
960 lbs

MODEL

6036 Expanded Top

Request Info

WORK AREA /
DOOR OPENING

60" x 36" x 36"H
2 Doors 27" x 28"H

OVERALL
DIMENSIONS

65" x 51" x 90"H

DUST COLLECTOR
SPECIFICATIONS

440 sq.ft. cartridge
1100 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

208/230/460/60Hz
Single power source

ESTIMATED
SHIPPING WT.

Wood crate
980 lbs

MODEL

6048 Expanded Top

Request Info

WORK AREA /
DOOR OPENING

60" x 48" x 36"H
2 Doors 39" x 28"H

OVERALL
DIMENSIONS

65" x 65" x 90"H

DUST COLLECTOR
SPECIFICATIONS

440 sq.ft. cartridge
1100 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

208/230/460/60Hz
Single power source

ESTIMATED
SHIPPING WT.

Wood crate
1400 lbs

MODEL

6060 1 Station

Request Info

WORK AREA /
DOOR OPENING

60" x 60" x 48"H
2 Doors 51" x 40"H

OVERALL
DIMENSIONS

65" x 75" x 102"H

DUST COLLECTOR
SPECIFICATIONS

440 sq.ft. cartridge
1100 cfm blower C-III
Internal Separator

STANDARD
ELECTRICAL

208/230/460/60Hz
Single power source

ESTIMATED
SHIPPING WT.

Wood crate
1700 lbs

MODEL

9648 2 Station

Request Info

WORK AREA /
DOOR OPENING

96" x 48" x 48"H
2 Doors 39" x 40"H

OVERALL
DIMENSIONS

100" x 68" x 102"H

DUST COLLECTOR
SPECIFICATIONS

(2) 220 sq.ft. cartridges
(2) 700 cfm C-III blower
(2) Internal Separators

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
1700 lbs

MODEL

12060 Expanded Top

Request Info

WORK AREA /
DOOR OPENING

120" x 60" x 48"H
2 Doors 51" x 40"H

OVERALL
DIMENSIONS

126" x 116" x 110"H

DUST COLLECTOR
SPECIFICATIONS

(2) 440 sq.ft. cartridges
(2) 1100 cfm blowers
(2) Internal Separator

STANDARD
ELECTRICAL

208/230/460/60Hz

ESTIMATED
SHIPPING WT.

Wood crate
2800 lbs
