Shop Standard 2.0 | Media Blast & Abrasives, Inc.

The newly designed Shop Standard 2.0 is made with 100% welded 12- and 14-gauge CRS. This blast cabinet comes with internal abrasive storage, *patented separator reclaimer, negative pressure, 100% welded, hopper bottom dust storage dust collector with service access door, and many other included standard features that outperforms competitor’s mediablasters.

The Shop Standard 2.0 sandblasting cabinet is available in four (4) cabinet sizes to accommodate a variety of applications using a 5/16” (25 cfm) gun size for faster part processing when daily operation is not needed or required.

The original Shop Standard was one of Media Blasts’ first models in 1977. The new, redesigned model debuted in 2018 with an advanced negative pressure cartridge filtration dust collector design used in all Media Blast® siphon and direct pressure Industrial Production blasting cabinets.



The Shop Standard 2.0 MediaBlaster® offers semi-automatic pneumatic vibrator cleaning cycle that cleans with the flick of the air switch. These sand blasting cabinets are larger – deeper, wider and taller – and come fully loaded with machine features. This blast cabinet is a 100% welded steel cabinet with no-spill door construction. It includes the new cartridge dust collector technology using all negative pressure dust collector construction with semi-automatic pneumatic vibrator cleaning cycle and 90 square feet of MERV tested and certified cartridge filtration. (This is the same technology used on the Cobra models.) The Shop Standard 2.0 also has the blower on the clean side of the filters for extended longtime use. An optional Blower Silencer is available for reduced blower exhaust noise level when required.

The All-New Shop Standard 2.0 gets you almost to our industrial sandblasting equipment and construction without the Production machine cost.

Why Choose Media Blast & Abrasive, Inc.?

Looking for a high-quality media blast machine that won't let you down? Look no further than Media Blast & Abrasive, Inc. Our state-of-the-art machines and unparalleled customer service make us the obvious choice for anyone in need of reliable blasting equipment. Our Shop Standard 2.0 Blast Cabinet is just one of the many products we offer, and it's sure to exceed your expectations. If you have any questions about our products or services, don't hesitate to get in touch. Our knowledgeable team is always happy to help!

Read more
Jump to Machine Specs

If you’re looking for blast cabinet parts or the user manual for this machine, contact us here.

*US 7,008,304

  • 13-1/2” x 15-1/2” View Window on 36” Cabinet Width and 24” x 15-1/2” View Window on 48” Cabinet Width, Safety Glass
  • Low Static Window Protector Glass
  • Tool-Less Window Replacement
  • Advanced LED Lighting
  • 8” Work Ports
  • All Air Controls
  • Blow-Off Gun
  • Abrasive Flow Control Mixing Valve
  • Tungsten Carbide Nozzle
  • Right Side Access Door
  • Window Sweeps
  • Large Hopper Drain
  • Abrasive Mixing
  • Valve Sump
  • Foot Operated Blast
  • *Patented Separator Reclaimer
  • Negative Pressure Dust Collector, 100% Welded
  • 110 sq.ft. MERV Tested Filter Cartridges
  • Semi-Automatic Dust Collector Vibrator Cleaning Cycle
  • Large Dust Storage Hopper
  • Dust Collector Service Door
  • 500 cfm Blower @ 1” S.P.
  • 22 cfm Tungsten Nozzle Gun
  • Machine Lag Pads

*US 7,008,304

  • Ambient air dryer
  • Boron carbide nozzle for use with cutting abrasive
  • Blower silencer
  • Fixed turntable
  • Anti-static grounding kit
  • Mirror units available
  • Gun holding fixture
  • Cabinet installation kit
Model Name:

Shop Standard 2.0

Machine Type:

New design – 100% welded cabinet & dust collector

Abrasive Delivery:

Dry, siphon

Air Specs:

22 cfm @ 80 psi

Compressed Air Usage:

20 cfm at 80 psi

Suggested Air Compressor:

We recommend a 220-volt single-phase electrical power supply for the air compressor.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.

Recommended Abrasive Size:

60 to 120 mesh

Additional Abrasive Info:

Mil-Spec #8 glass beads best

Most Used Abrasive Type:

Glass Beads and Aluminum Oxide

Dust Collector:

500 cfm blower @ 1” S.P., 110 sq. ft. negative pressure cartridge filter dust collector -separator reclaimer – pneumatic vibrator cleaning cycle with air switch

Key Features:

4 std. cabinet sizes – 100% welded – abrasive mixing valve – all air controls – separator reclaimer – tungsten nozzle – safety glass window – low static window protector – LED cabinet lighting – cartridge dust collector with semi-automatic vibrator cleaning cycle

WARNING:</span>

Paint Specification:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.

SHOP STANDARD 2.0
MODEL
WORK AREA /
DOOR OPENING
OVERALL
DIMENSIONS
DUST COLLECTOR
SPECIFICATIONS
STANDARD
ELECTRICAL
ESTIMATED
SHIPPING WT.

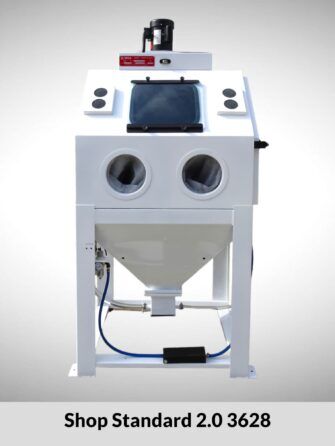

3628
Request Info
36" x 28" x 30"H
Door 22" x 25"H
47" x 37" x 63"H Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage
120V/60Hz/1Ph Wood crate
455 lbs
4828
Request Info
48" x 28" x 30"H
Door 22" x 25"H
52" x 43" x 72"H Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage
1/2 hp 550 cfm blower
120V/60Hz/1Ph Wood crate
500 lbs
3636
Request Info
36" x 36" x 30"H
Door 30" x 25"H
44" x 51" x 72"H Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage
120V/60Hz/1Ph Wood crate
500 lbs
4836
Request Info
48" x 36" x 30"H
Door 30" x 25"H
52" x 51" x 72"H Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage
120V/60Hz/1Ph Wood crate
520 lbs
SHOP STANDARD 2.0
MODEL
WORK AREA /
DOOR OPENING

36" x 28" x 30"H
Door 22" x 25"H

OVERALL
DIMENSIONS

47" x 37" x 63"H

DUST COLLECTOR
SPECIFICATIONS

Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
455 lbs

SHOP STANDARD 2.0
MODEL
WORK AREA /
DOOR OPENING

48" x 28" x 30"H
Door 22" x 25"H

OVERALL
DIMENSIONS

52" x 43" x 72"H

DUST COLLECTOR
SPECIFICATIONS

Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage
1/2 hp 550 cfm blower

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
500 lbs

SHOP STANDARD 2.0
MODEL
WORK AREA /
DOOR OPENING

36" x 36" x 30"H
Door 30" x 25"H

OVERALL
DIMENSIONS

44" x 51" x 72"H

DUST COLLECTOR
SPECIFICATIONS

Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
500 lbs

SHOP STANDARD 2.0
MODEL
WORK AREA /
DOOR OPENING

48" x 36" x 30"H
Door 30" x 25"H

OVERALL
DIMENSIONS

52" x 51" x 72"H

DUST COLLECTOR
SPECIFICATIONS

Filter Cartridge 110 Sq.Ft.
1/2 hp 500 cfm blower
100% Welded Negative Pressure
Hopper dust storage

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
520 lbs
