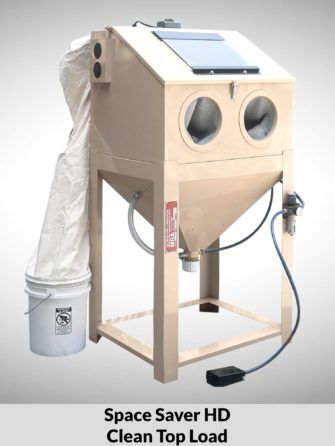

Space Saver HD – Media Blast® Sandblaster

Space Saver HD MediaBlaster® comes standard with the Class III 335 cfm pressure blower with positive pressure tubular dust bag collector. It also comes with a patented centrifugal abrasive separator reclaimer.

It is a light duty, top-loading, siphon sandblasting cabinet with a small machine footprint. The Space Saver HD requires 16 cfm of compressed air for proper operation. This blast cabinet was designed for the following:

  • home garage use
  • small equipment repair shops
  • environments that cannot accommodate side loading access doors

Among the standard features, the Space Saver HD comes standard with a Class III 335 cfm pressure blower and patented centrifugal abrasive separator reclaimer. The reclaimer is used to remove dust and spent abrasive from the cabinet which vastly increases visibility. The *patented separator reclaimer is one of the most important items on any blast cabinet. This sand blasting cabinet also includes the tubular dust bag with dust collection pail. This Mediablaster® is primarily used for glass bead blasting.

The Space Saver HD is a 100% welded cabinet, which includes 8-inch diameter operator work ports to allow for ease of operation.

Look to the Cobra Stage I and Stage II for a much larger cabinet with negative pressure cartridge style dust collector that includes a 100% welded dust collector cabinet design.

Why Choose Media Blast & Abrasive, Inc.?

When it comes to media blast machines, there are countless options out there. But at Media Blast & Abrasive, Inc., we believe that our products stand out from the rest. Our top-of-the-line machines are designed to provide exceptional results, whether you're working on a large industrial project or a small-scale DIY endeavor. Plus, with our Space Saver HD model, you can enjoy powerful blasting capabilities in a compact and easy-to-use package. We're confident that you won't find a better choice for your blasting needs. If you have any questions about our products or services, don't hesitate to reach out to us today. We're always here to help.

Read more
Jump to Machine Specs

If you’re looking for blast cabinet parts or the user manual for this machine, contact us here.

To learn more, check out the SPOTLIGHT article on our blog.

*US 7,008,304

STANDARD FEATURES:

  • 100% welded 14-gauge CRS cabinet construction
  • Adjustable abrasive flow-control mixing valve
  • Foot operated blast control valve
  • Small 2-Y blast gun with tungsten carbide nozzle
  • Advanced LED cabinet lighting
  • Safety glass view window
  • View window protector glass (low static)
  • Clean top loading access door
  • Precision air-regulator, air filter/water trap with gauge
  • 8” diameter work ports with attached gloves
  • Perforated metal work grates
  • Bolt-in cabinet hopper scalper screen
  • 1/2 hp 335 cfm class III pressure blower
  • Separator reclaimer, pneumatic centrifuge bolt-on (replaceable), *patented
  • Tubular dust bag filter with 5-gallon dust removal pale
  • Machine Lag Pads
  • Catalyst paint
  • *US 7,008,304

AVAILABLE OPTIONS:

  • Ambient air dryer
  • Safety door interlock
  • Long wear abrasive hose for cutting abrasives
  • Anti-static grounding kit
  • Cabinet installation kit

NOTE: Standard Features are included with every model. Available Options can be added at additional cost and may require custom machine work, which may increase machine delivery time.

Model Name:

Space Saver HD

Machine Type:

Light duty machine with small footprint and top-loading design

Abrasive Delivery:

Dry, Siphon

Air Specs:

9-16 cfm

Compressed Air Usage:

16 cfm at 80 psi

Suggested Air Compressor:

We recommend a 220-volt single-phase electrical power supply for the air compressor.
Pro Tip: Never buy a compressor using the displacement cfm number; always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.

Recommended Abrasive Size:

60 to 120 mesh

Additional Abrasive Info:

100 mesh and finer with small gun

Most Used Abrasive Type:

Glass Beads and Glass Bead Blend with Aluminum Oxide

Dust Collector:

330 cfm blower – tubular dust bag – dust storage pail – patented separator reclaimer

Key Features:

100% welded – foot operated blast valve – tungsten carbide nozzle – abrasive mixing valve – safety glass window – low static window protector – air regulator combo – patented separator reclaimer – top loading for a small footprint

WARNING:
Paint Specification:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample; please call 866-204-7068 for pricing.

MODEL WORK AREA /
DOOR OPENING
OVERALL
DIMENSIONS
DUST COLLECTOR
SPECIFICATIONS
STANDARD
ELECTRICAL
ESTIMATED
SHIPPING WT.
SPACE SAVER HD
Request Info
30" x 24" x 23"H
Top Load 30" x 16"H
32" x 37" x 63"H Dust bag
5-gallon dust pail
1/2 hp 335 cfm blower
120V/60Hz/1Ph Wood crate
300 lbs
MODEL
SPACE SAVER HD
Request Info
WORK AREA /
DOOR OPENING

30" x 24" x 23"H
Top Load 30" x 16"H

OVERALL
DIMENSIONS

32" x 37" x 63"H

DUST COLLECTOR
SPECIFICATIONS

Dust bag
5-gallon dust pail
1/2 hp 335 cfm blower

STANDARD
ELECTRICAL

120V/60Hz/1Ph

ESTIMATED
SHIPPING WT.

Wood crate
300 lbs
